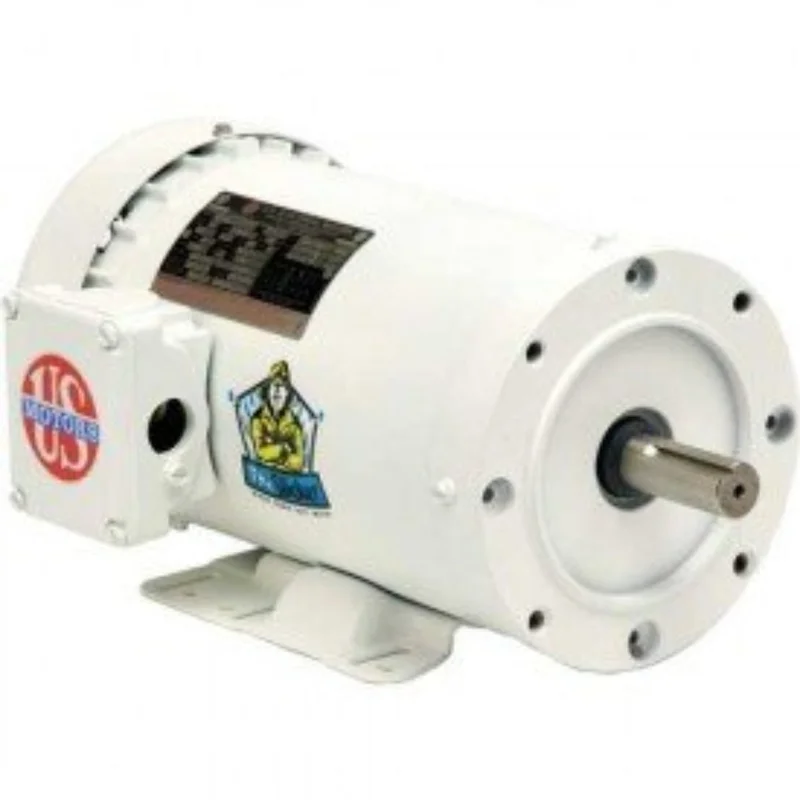

US Motors WD34C2JC Washdown Motor 3/4 HP 1725 RPM 56C 115V – WD34C2JC
The US Motors WD34C2JC Washdown Motor is designed for single-phase applications requiring strong performance under wet or washdown conditions. This 3/4 HP motor operates at 1725 RPM and fits a 56C frame with a C-Face mounting.
Product Highlights
This motor is ideal for applications in bakeries, canneries, dairies, and meat packing plants where washdowns are frequent. It features a white epoxy paint finish that resists corrosion, and ball bearings for durability.
Features
- 3/4 HP, 1725 RPM
- Totally Enclosed Fan-Cooled (TEFC) design
- 115V AC, single-phase power
Specifications
| Brand | US Motors |
|---|---|
| Model Number (MPN) | WD34C2JC |
| Product Type | Washdown Motor |
| Horsepower | 3/4 HP |
| RPM | 1725 RPM |
| Frame | 56C |
| Voltage | 115V AC |
| Full Load Amps | 12.8/6.4-6.5 |
| Insulation Class | F |
| Shaft Diameter | 5/8 inches |
| Shaft Length | 1 15/16 inches |
What our Experts Think
-
Built for Harsh Environments
-
Totally Enclosed Fan Cooled (TEFC) design with USDA-approved, non-toxic white epoxy coating
-
Ideal for washdown areas, food processing, and other environments requiring frequent cleaning
-
Reliable and Efficient Performance
-
Operates at 1725 RPM, delivering 3/4 horsepower for a wide range of industrial applications
-
Class F insulation ensures dependable performance, even in challenging conditions
-
Durable Construction
-
Features a 56C frame with C-Face mounting for easy installation into existing systems
-
Ball bearings and a rigid base ensure long-lasting durability and smooth operation
-
Continuous Duty
-
Designed for continuous operation, providing stable and efficient performance over time
Q&A
Q: What applications is the U.S. Motors WD34C2JC motor suitable for?
A: This motor is designed for washdown-duty applications, commonly used in environments requiring frequent cleaning, such as food processing, pharmaceutical manufacturing, and chemical handling.
Q: What are the key specifications of the WD34C2JC motor?
A: The motor delivers 3/4 horsepower at 1725 RPM, operates on 115V single-phase power, and features a 56C frame size with a C-Face rigid base mount. It has a Totally Enclosed Fan Cooled (TEFC) enclosure, ensuring protection against dust and moisture.
Q: What is the motor’s service factor?
A: The WD34C2JC motor has a service factor of 1.15, allowing it to handle occasional overloads up to 15% above its rated capacity.
Q: What are the motor’s construction features?
A: The motor includes a rigid base mount, a keyed shaft, and ball bearings for smooth operation. It features Class F insulation, suitable for continuous duty in ambient temperatures up to 40°C.
Q: Is this motor suitable for variable frequency drive (VFD) applications?
A: Yes, the WD34C2JC motor is compatible with VFD applications, offering a 10:1 variable torque and 4:1 constant torque range for versatile speed control.
Maintenance Tips
-
Ensure Proper Ventilation: Install the motor in a well-ventilated area to prevent overheating.
-
Inspect Electrical Connections: Regularly check wiring for signs of wear, corrosion, or loose connections to prevent electrical issues.
-
Monitor Operating Voltage: Confirm the motor operates within its rated voltage range (115/208-230V) to avoid damage.
-
Lubricate Bearings: Apply lubricant to bearings as specified by the manufacturer to reduce friction and prevent wear.
-
Keep the Motor Clean: Remove dust and debris from the motor and surrounding area to maintain efficiency.
-
Test Thermal Overload Protection: Ensure the motor’s thermal overload protection is functioning properly to prevent overheating.
-
Monitor Ambient Temperature: Ensure the motor operates within the recommended temperature range to prevent overheating and ensure efficient performance.
