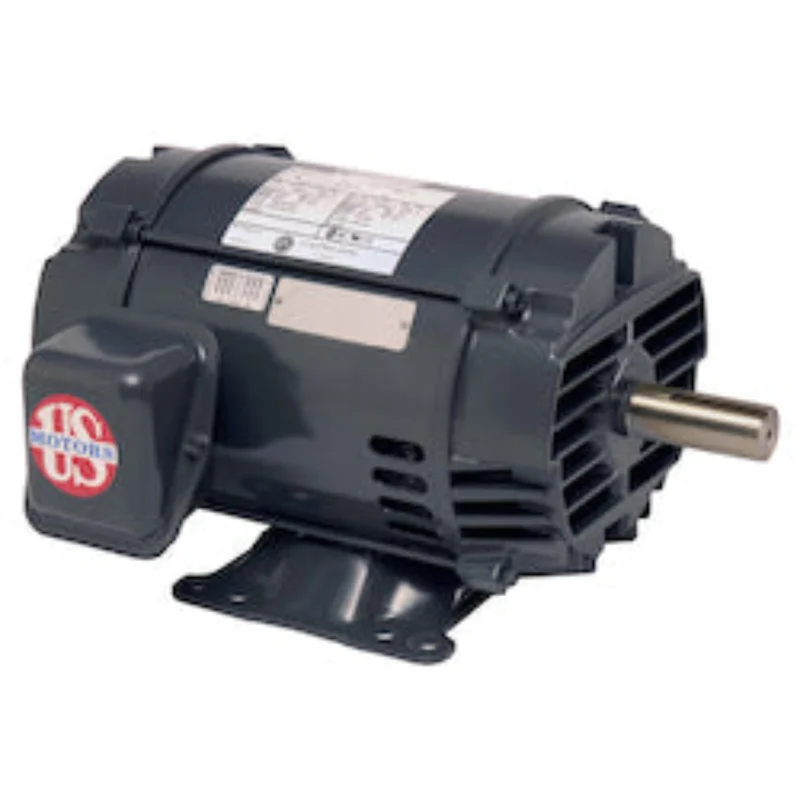

U.S. Motors D5P2D General Purpose Three Phase ODP Horizontal – Footed Motor – D5P2D
The U.S. Motors D5P2D is a general-purpose three-phase motor designed for various industrial applications. This motor provides reliable performance and is suitable for use in pumps, fans, compressors, and material handling equipment. It operates at 5 horsepower and reaches a speed of 1800 revolutions per minute.
Product Highlights
The D5P2D motor is engineered with a rolled steel frame and meets high standards of efficiency and durability. It features a continuous duty cycle and is designed for easy installation in horizontal footed applications.
Features
- Power Supply: 208-230/460 volts
- RPM: 1800
- Enclosure Type: Open Drip Proof (ODP)
Specifications
| Brand | U.S. Motors |
|---|---|
| Horsepower (HP) | 5 HP |
| Phase | Three Phase |
| Poles | 4 |
| Voltage Rating | 208-230/460 V |
| Full Load Amps | 13.7-12.4/6.2 A |
| Duty | Continuous Duty |
| Service Factor | 1.15 |
| Weight | 60.0 pounds |
| Frequency | 50/60 Hz |
| Frame Size | 184T |
What our Experts Think
-
Strong, Consistent Performance
-
Provides 5 horsepower at 1800 RPM, perfect for a wide range of general-purpose industrial applications
-
Operates on 208-230/460V three-phase power for reliable, balanced performance
-
Built for Longevity
-
Rugged rolled steel 184T frame ensures durability under continuous use
-
Open Drip Proof (ODP) enclosure is suited for clean, indoor environments with adequate airflow
-
Energy Efficient
-
Offers a nominal efficiency of 89.5%, contributing to lower energy usage
-
Designed with Class F insulation and a Class B temperature rise at service factor to enhance motor life
-
Installation Flexibility
-
Horizontal foot-mounted configuration allows for easy installation in various setups
-
Reversible rotation adds versatility for integration into different equipment types
Q&A
Q: What is the U.S. Motors D5P2D motor used for?
A: This motor is ideal for general-purpose industrial applications, including pumps, fans, compressors, and conveyors in commercial or manufacturing settings.
Q: What are the key specifications of the D5P2D motor?
A: It delivers 5 horsepower at 1800 RPM, operates on 208-230/460V three-phase power, and comes with a 184T frame and rigid foot-mounted base. It features an Open Drip Proof (ODP) enclosure.
Q: Does the motor support overload protection?
A: Yes, it has a 1.15 service factor, allowing it to handle temporary overloads beyond its rated capacity.
Q: What are its construction and insulation features?
A: The motor includes Class F insulation with a Class B temperature rise at full load. It has a rolled steel frame, aluminum end shields, and double-shielded ball bearings for durability.
Q: What is the maximum ambient temperature rating?
A: The D5P2D is rated for continuous operation in ambient temperatures up to 40°C.
Maintenance Tips
-
Ensure Proper Ventilation: Install the motor in a well-ventilated area to prevent overheating.
-
Inspect Electrical Connections: Regularly check wiring for signs of wear, corrosion, or loose connections to prevent electrical faults.
-
Monitor Operating Voltage: Confirm that the motor operates within its rated voltage range (208-230/460V) to avoid damage.
-
Lubricate Bearings: Apply lubricant to bearings as specified by the manufacturer to reduce friction and prevent wear.
-
Keep the Motor Clean: Remove dust and debris from the motor and surrounding area to maintain efficiency and prevent overheating.
-
Test Thermal Overload Protection: Ensure the motor’s thermal overload protection is functioning correctly to prevent overheating.
-
Monitor Ambient Temperature: Operate the motor within the recommended ambient temperature range to prevent overheating and ensure efficient operation.
