T20 EBIKE-Schneller Versand

Description

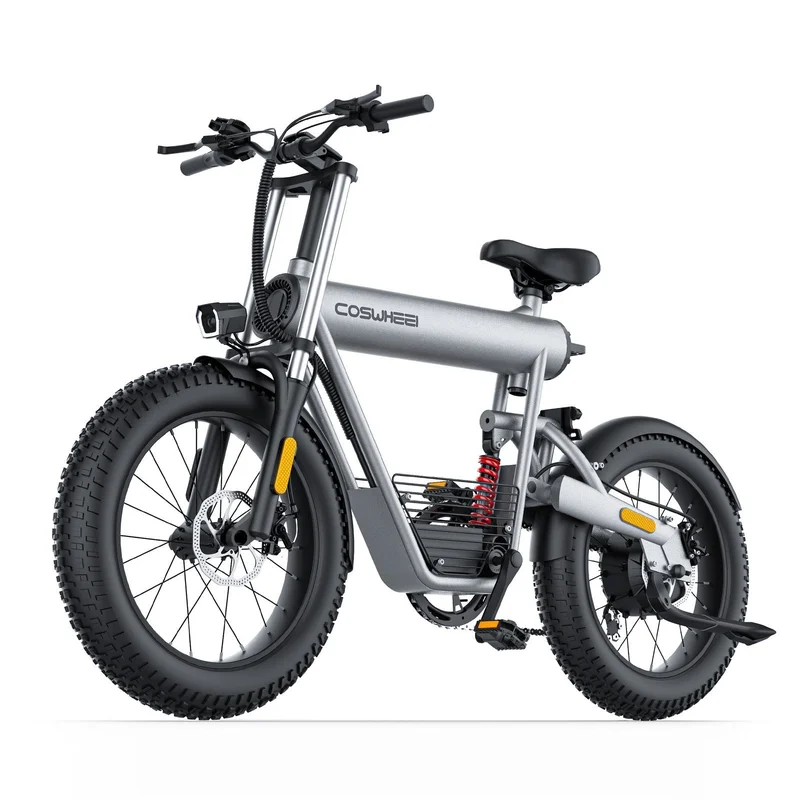

T20 EBIKE

Performance

• Top Speed: Class 2/3, 28 Mph (45Km/h)
• Range: 40+miles (64km) in Class-2 throttle-only mode (pure electricity); 70+miles (113km) in Class-1 PAS (pedal assist)
• Motor: 48V Peak 1000W (Rated 500W) Brushless Rear Hub Motor 50N.m
• Battery: 48V 20Ah Battery (Lithium 18650 Cells)
• Energy: 960Wh
• Front Suspension: 20″ Shoulder Shock Absorbing, 80mm Travel
• Brakes: Disc Brake, Equipped with 160mm Stainless Brake Disc
• Tires: Chaoyang Sunny Road Tire 20″*4″ IA-5189
• Throttle: Grip Twist Throttle

Electronics

• Charger: 48V3A Charger
• Charging Time: 3.5-8.0 Hours
• Display: Easy Read LCD Display
• Controller: 48V 22A
• Front Light: LED
• Rear Light: LED
• Pedal Assist: 5 Levels
• Sensors: Speed Sensor

Components

• Frame: Hydroformed Triple-Butted 6061-T6 Aluminium Alloy
• Pedal: Aluminum Alloy Pedal, with Reflect-light, Axis 9/16 x2
• Crank: 1/2 „*3/32″*46T 7-speed ED Tooth Plate
• Rear Derailleur: Shimano 7-Speed
• Chain: 7-speed Anti-rust, 1/2″ * 3/32″
• Handlebars: Iron, Curved Handle, Matte Black 620L*Φ31.8*H: 30 High

Geometry

• Suitable Height: 5’3″ – 6’8″
• Seat Height: 35.8″ (91cm)
• Bike Height: 45.3″ (115cm)
• Wheelbase: 43.3″ (110cm)
• Handlebar Width: 25.6″ (65cm)
• Bike Weight: ≥88lbs (with Battery) (≥40kg)
• Maximum Load: 330lbs (150kg)
• Safe Load: 265lbs (120kg)
• Overall Size: 70.9″ * 25.6″ *45.3″ (180*65*115cm)
• Package Size: 54.3″ * 11.8″ * 30.7″ (138*30*78cm)
