Description

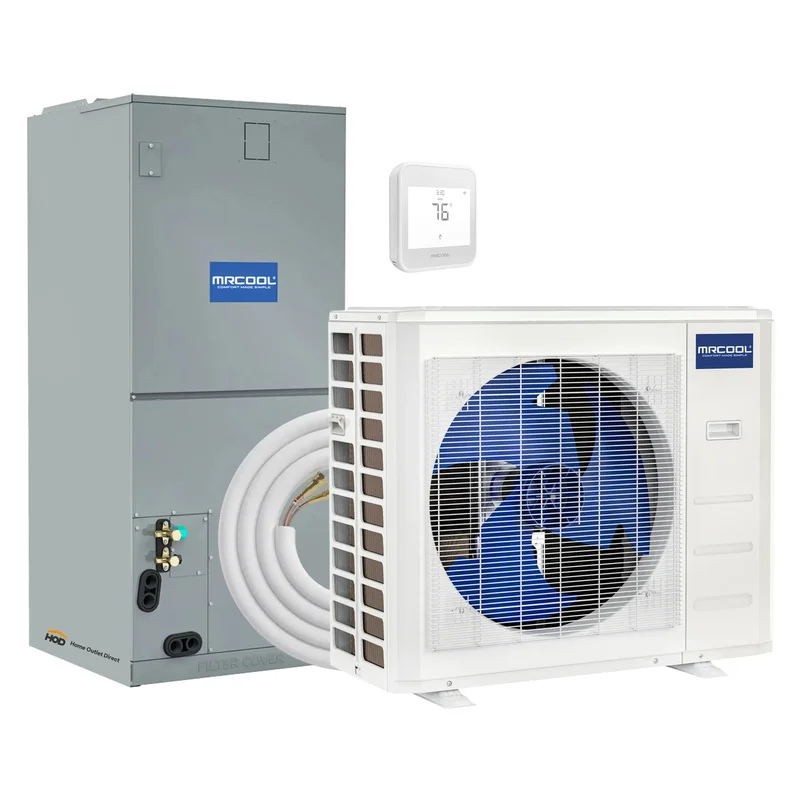

MRCOOL VersaPro 2nd Gen Central Split System with 18K BTU, 1.5 Ton, 18.8 SEER2, Heat Pump Condenser and Ducted Air Handler with 15 Ft. R-454B No-Vac Lineset – MVP-18-HP-230A15
The MRCOOL Central Split System Bundle is a heating and cooling system you need to stay warm in winter, cool in summer, and energy efficient all year long.
Features
-
MRCOOL VersaPro 2nd Gen 18K BTU, 1.5 Ton, 18.8 SEER2 Central Ducted Heat Pump Condenser
-
MRCOOL VersaPro 2nd Gen 18K BTU, 1.5 Ton Central Ducted Air Handler
-
MRCOOL 15 Ft. R-454B No-Vac Lineset
-
MRCOOL Smart Thermostat
1. MRCOOL VersaPro 2nd Gen 18K BTU, 1.5 Ton, 18.8 SEER2 Central Ducted Heat Pump Condenser (MVP-18-HP-C-230A00-O)
-
1.5 Ton
-
SEER2 rating of 18.8 and an HSPF4
-
R-454B refrigerant
-
10-year warranty covering the compressor and parts
2. MRCOOL VersaPro 2nd Gen 18K BTU, 1.5 Ton Central Ducted Air Handler (MVP-18-HP-MUAH-230A00-O)
-
1.5 Ton
-
SEER2 rating of up to 18.8
-
R-454B refrigerant
-
10-year warranty
3. MRCOOL 15 Ft. R-454B No-Vac Lineset (NV15-3834-O)
-
Kink Resistant – Precharged
-
Simple Secure Quick Connect
-
UV Protected Insulation
-
Works With: VersaPro 2nd Gen – Central Ducted Hyper Heat 2nd Gen
4. MRCOOL Smart Thermostat (MST04)
-
Ensure ideal temperature with presets for Home, Away, and Sleep that perfectly align to match your specific needs and preferences.
-
One App for All Your HVAC Systems
-
Global Control for Remote Accessibility
-
Works with Alexa, Google, Siri, and MRCOOL® Link
Specifications
| Condenser | |
|---|---|
| Dimensions | 12.99″ D x 21.81″ H x 31.69″ W |
| SEER2 | 18.8 |
| Tonnage | 1.5 |
| Cooling Capacity (BTU) | 18000 |
| Heating Capacity (BTU) | 18000 |
| Voltage (V) | 208-230 |
| Refrigerant Type | R454B |
| Air Handler | |
| Dimensions | 17.52″ D x 45″ H x 21.02″ W |
| Tonnage | 1.5 |
| Cooling Capacity (BTU) | 18000 |
| Heating Capacity (BTU) | 18000 |
| Voltage (V) | 115/208-230 |
| Lineset | |
| Dimensions | 30″ D x 30″ H x 5″ W |
| Refrigerant Type | R-454B |
| Refrigerant Volume (Oz) | 2.11 |
| Line Set Length | 15ft |
| Lineset Fitting Type | Quick-Connect |
| Liquid Line Size | 3/8 |
| Suction Line Size | 3/4 |
What our Experts Think
-
Efficient Comfort for Smaller Spaces – 18,000 BTU (1.5 Ton) system ideal for small to medium-sized rooms.
-
High SEER2 Rating – 18.8 SEER2 ensures energy-efficient operation and lower utility costs.
-
Heat Pump Technology – Provides reliable year-round heating and cooling.
-
15 Ft. R-454B No-Vac Lineset – Pre-charged line set simplifies installation and reduces setup time.
-
Durable & Quiet – 2nd Gen design ensures long-lasting, low-noise performance.
Q&A
Q: What is included in this MRCOOL VersaPro 2nd Gen system?
A: It includes an 18,000 BTU (1.5 ton) heat pump condenser, ducted air handler, and a 15 ft. pre-charged R-454B No-Vac lineset for easy installation.
Q: How energy efficient is the system?
A: With an 18.8 SEER2 rating, it delivers high-efficiency cooling and heating while reducing energy costs.
Q: Can it provide both heating and cooling?
A: Yes, the heat pump condenser provides year-round heating and cooling for consistent indoor comfort.
Q: What makes the No-Vac lineset beneficial?
A: The pre-charged R-454B No-Vac lineset simplifies installation by eliminating the need for vacuum pumps or additional refrigerant charging.
Q: What size area can it cover?
A: Ideal for smaller homes or rooms up to approximately 700–1,000 sq. ft., depending on insulation and climate.
Q: Who should choose this system?
A: Homeowners seeking a compact, energy-efficient central HVAC system with simplified installation and reliable year-round performance.
Maintenance Tips
-
Air Filter Care: Replace or clean filters every 1–3 months to maintain optimal airflow and efficiency.
-
Outdoor Unit Maintenance: Keep the condenser free of leaves, debris, and obstructions.
-
Ductwork Inspection: Seal leaks and clean ducts regularly for uniform air distribution.
-
Condensate Drain: Ensure drain lines are clear to prevent water buildup.
-
Coil Cleaning: Schedule annual cleaning of evaporator and condenser coils for peak performance.
-
Lineset Check: Inspect the 15 ft. R-454B No-Vac lineset for proper installation and insulation.
-
Professional Service: Schedule yearly maintenance to maximize SEER2 efficiency and extend system lifespan.
