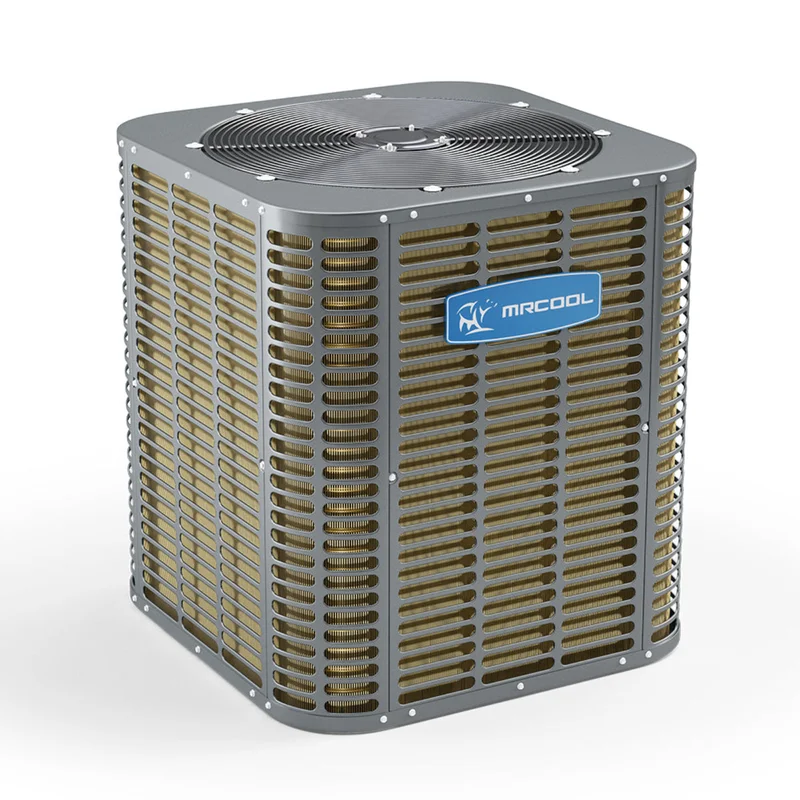

MRCOOL ProDirect 48K BTU, 4 Ton, 15 SEER, Split System A/C Condenser – HAC15048
You deserve rest and relaxation while you’re at home, which is why you need to throw out your old air conditioner that hasn’t kept you cool in ages and switch it out with the ProDirect 4 Ton 15 SEER Split System A/C Condenser from MRCOOL. The scroll compressor works to process the refrigerant and move it through the system quickly and efficiently so that your home is brought to the exact temperature you want as soon as possible. For added efficiency, the piston flow control device manages the speed and volume of the refrigerant as it runs to bring you comfort.
This unit has a galvanized steel cabinet protecting it from most damage, and a Gold Fin® coil coating that keeps rust and corrosion far away from your system by keeping water off the coils. This nice-looking, non-toxic, environmentally friendly coating also gives your system better insulation. Be sure to register this AHRI certified, ETL listed condenser online to receive strong warranty protection. You don’t have to go through another hot, sticky, sweaty summer when you’ve got comfort created by the MRCOOL ProDirect 4 ton split system A/C condenser.
Features
- Equipment should be installed by a qualified professional
- 10 Year Registered Warranty
- 15 SEER
- R-410A environmentally friendly refrigerant
- AHRI Certified & ETL listed
- Pressure and Temperature protection sensors help prevent damage
- A shape coils, constructed with copper tubing and enhanced aluminum fins.
- Gold Fin® condenser: corrosion resistant – live on the coast? Don’t worry, our condenser is built to resist long term corrosion
Specifications
| Dimensions | 29-1/7 in D x 32-7/8 in H x 29-1/7 in W |
|---|---|
| SEER2 | 13.8 |
| EER2 | 11.2 |
| CFM | 3820 |
| Tonnage | 4 |
| Cooling Capacity | 47000 |
| Voltage | 230 V |
| Phase | 1 |
| Cycle | 60 Hz |
| Max Fuse Breaker | 24.01 A |
| Refrigerant Volume | 144.62 oz |
| Decibel Rating | 63 dBA |
| Liquid Line Size | 3/8 in |
| Suction Line Size | 7/8 in |
| Compressor Motor Type | scroll |
| ETL Listed | Yes |
| AHRI Certified | Yes |
| Registered Parts Warranty | 10 year parts |
| Proposition 65 Warning | Yes |
| Net Weight | 188 lbs |
| Gross Depth | 29-9/10 in |
| Gross Height | 34-2/5 in |
| Gross Width | 29-9/10 in |
| Gross Weight | 197 lbs |
What our Experts Think
-
High Cooling Power – 48,000 BTU (4 Ton) capacity ideal for medium-to-large residential or light commercial spaces.
-
Efficient Performance – 15 SEER rating balances energy efficiency with dependable cooling.
-
Durable Build – Heavy-duty construction designed for long-lasting outdoor use.
-
Reliable Operation – Provides consistent comfort in demanding climates.
-
Professional Solution – Works seamlessly with compatible air handlers for a complete central system.
Q&A
Q: What is the MRCOOL ProDirect 48K BTU Condenser used for?
A: It’s a central air conditioning condenser designed to deliver reliable cooling for medium to large residential or light commercial spaces.
Q: How powerful is this unit?
A: With 48,000 BTU (4 tons) of cooling capacity, it can comfortably cool spaces up to 2,000–2,500 sq. ft., depending on climate and insulation.
Q: What is its efficiency rating?
A: This unit offers a 15 SEER rating, providing solid energy efficiency while keeping installation and operating costs affordable.
Q: Is it compatible with standard split systems?
A: Yes, it pairs with matching MRCOOL ProDirect air handlers or coils for a complete central cooling system.
Q: Does it provide heating as well?
A: No, this model is cooling-only. For heating and cooling, a heat pump version is recommended.
Q: Who should choose this condenser?
A: Homeowners and small businesses seeking a cost-effective, durable, and dependable central cooling solution.
Maintenance Tips
-
Keep Unit Clear: Maintain at least 2 feet of clearance around the condenser for proper airflow.
-
Clean Coils: Rinse or brush condenser coils annually to improve efficiency.
-
Inspect Fan Blades: Check for dirt buildup or damage and clean as needed.
-
Filter Care: Replace indoor air filters every 1–3 months for consistent cooling.
-
Check Refrigerant Lines: Ensure insulation is intact and connections are secure.
-
Drainage Maintenance: Keep condensate lines clear to prevent clogs or leaks.
-
Annual Professional Service: Schedule system inspections to extend lifespan and maintain peak performance.
