Description

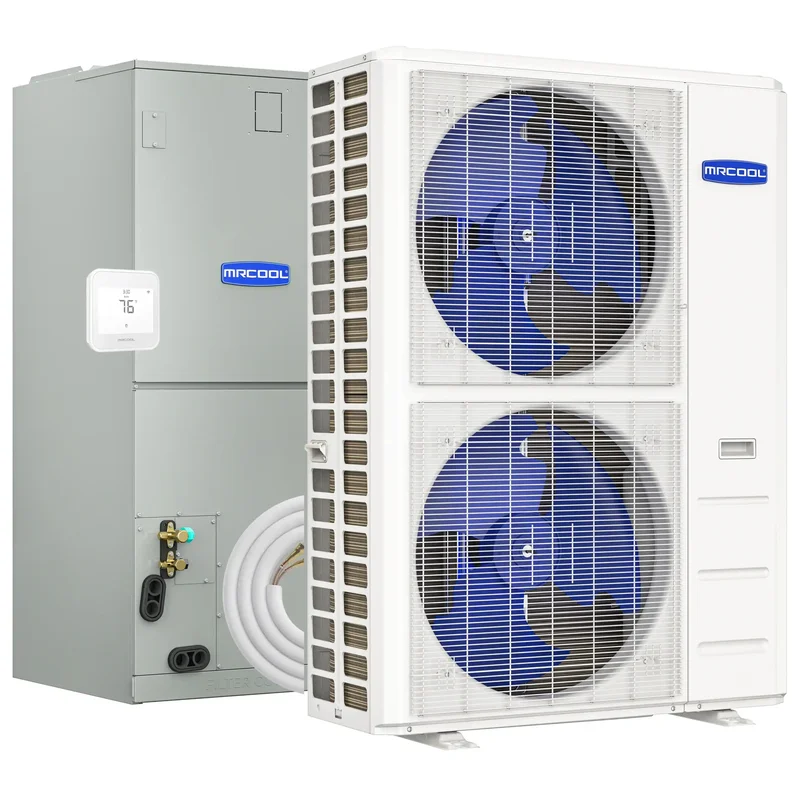

MRCOOL Hyper Heat 2nd Gen 60K BTU, 5 Ton, 16 SEER2 Heat Pump Condenser and Ducted Air Handler with 35 Ft. R-454B No-Vac Lineset – CENTRAL-60-HP-230B35
The MRCOOL Central Heat Pump & Air Conditioner Bundle is a heating and cooling system you need to stay warm in winter, cool in summer, and energy efficient all year long.
Features
-
MRCOOL Hyper Heat 2nd Gen 60K BTU, 5 Ton, 16 SEER2 Central Ducted Condenser
-
MRCOOL VersaPro 2nd Gen 54K BTU, 5 Ton Central Ducted Air Handler
-
MRCOOL 25 Ft. R-454B No-Vac Lineset
- MRCOOL Smart Thermostat
1. MRCOOL Hyper Heat 2nd Gen 60K BTU, 5 Ton, 16 SEER2 Central Ducted Condenser (CENTRAL-60-HP-C-230B00-O)
-
Thermostat makes it easy to control your home’s climate.
-
10-year warranty covering the compressor, parts, and labor,
2. MRCOOL VersaPro 2nd Gen 54K BTU, 5 Ton Central Ducted Air Handler (MVP-60-HP-MUAH-230A00-O)
- Uses R-454B refrigerant
- Provides flexible installation options
- SEER2 rating of up to 16
3. MRCOOL 25 Ft. R-454B No-Vac Lineset (NV25-3834-O)
- Kink Resistant – Precharged
-
Simple Secure Quick Connect
-
UV Protected Insulation
-
Works With: VersaPro 2nd Gen – Central Ducted Hyper Heat 2nd Gen
4. MRCOOL Smart Thermostat (MST04)
-
Ensure ideal temperature with presets for Home, Away, and Sleep that perfectly align to match your specific needs and preferences.
-
One App for All Your HVAC Systems
-
Global Control for Remote Accessibility
-
Works with Alexa, Google, Siri, and MRCOOL® Link
Specifications
| Condenser | |
|---|---|
| Dimensions | 16.34″ D x 52.48″ H x 37.48″ W |
| SEER2 | 16 |
| Tonnage | 5 |
| Cooling Capacity (BTU) | 54000 |
| Heating Capacity (BTU) | 56000 |
| Voltage (V) | 208-230 |
| Refrigerant Type | R454B |
| Air Handler | |
| Dimensions | 24.49″ D x 52.99″ H x 21.02″ w |
| Tonnage | 5 |
| Cooling Capacity (BTU) | 54000 |
| Heating Capacity (BTU) | 54000 |
| Voltage (V) | 115/208-230 |
| Lineset | |
| Dimensions | 30″ D x 35″ H x 5″ W |
| Refrigerant Type | R-454B |
| Refrigerant Volume (Oz) | 2.11 |
| Line Set Length | 25ft |
| Lineset Fitting Type | Quick-Connect |
| Liquid Line Size | 3/8 |
| Suction Line Size | 3/4 |
What our Experts Think
-
High-Capacity Comfort – 60,000 BTU (5 Ton) system efficiently heats and cools large homes or light commercial spaces.
-
Energy-Efficient Operation – 16 SEER2 rating ensures lower utility costs while maintaining consistent comfort.
-
Heat Pump Technology – Provides reliable year-round heating and cooling.
-
35 Ft. R-454B No-Vac Lineset – Pre-charged extended line set simplifies installation and reduces labor time.
-
Durable & Quiet – 2nd Gen design ensures long-lasting, low-noise performance for reliable operation.
Q&A
Q: What is included in this MRCOOL Hyper Heat 2nd Gen system?
A: It includes a 60,000 BTU (5 ton) heat pump condenser, ducted air handler, and a 35 ft. pre-charged R-454B No-Vac lineset for simplified installation.
Q: How energy efficient is the system?
A: With a 16 SEER2 rating, it provides efficient cooling and heating while reducing energy costs.
Q: Can it provide both heating and cooling?
A: Yes, the heat pump condenser delivers year-round comfort, handling both heating and cooling needs effectively.
Q: What makes the No-Vac lineset beneficial?
A: The pre-charged R-454B No-Vac lineset eliminates the need for vacuum pumps or additional refrigerant charging, simplifying installation.
Q: What size area can it cover?
A: Suitable for larger homes or commercial spaces up to approximately 2,500–3,000 sq. ft., depending on insulation and climate.
Q: Who should choose this system?
A: Homeowners or businesses seeking a high-capacity, energy-efficient central HVAC system with easy installation and reliable year-round performance.
Maintenance Tips
-
Air Filter Care: Replace or clean filters every 1–3 months for optimal airflow and efficiency.
-
Outdoor Unit Maintenance: Keep condenser free of leaves, dirt, and debris.
-
Ductwork Inspection: Seal leaks and clean ducts to ensure even air distribution.
-
Condensate Drain: Check and clear drain lines regularly to prevent water damage.
-
Coil Cleaning: Schedule annual cleaning of evaporator and condenser coils for peak performance.
-
Lineset Check: Inspect the 35 ft. R-454B No-Vac lineset for proper installation, insulation, and integrity.
-
Heat Kit Check: Verify electric heat kit operation if included, and inspect connections.
-
Professional Service: Schedule yearly maintenance to maintain 16 SEER2 efficiency and extend system life.
