Description

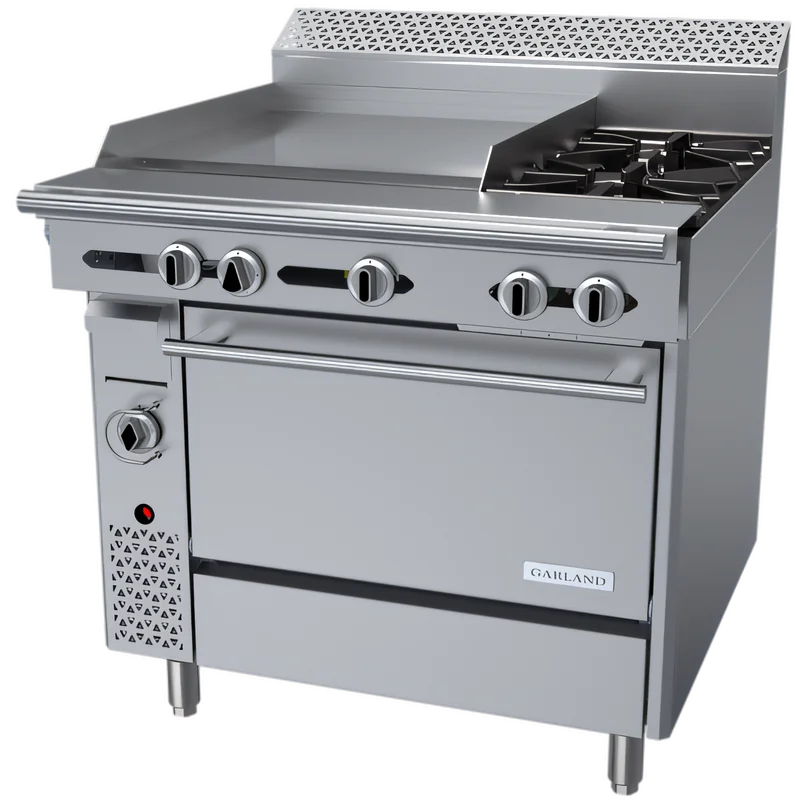

Garland C36-2R Garland Cuisine Gas Ranges – C36-2R
24″ Griddle (LH) · 2 Starfire Burners (RH) · Standard Oven
Engineered for high-volume, all-day production, the Garland Cuisine Series combination range marries the searing power of a 24″ griddle with two 35,000 BTU Starfire open burners and a full-size standard oven – all in a space-saving 36″ footprint. Built from the ground up for demanding commercial kitchens, this single piece of equipment lets you grill, sauté, boil and bake without missing a beat.
Features
- Versatile cooktop: Left-side 24″ x 27″ (610 mm) griddle with 1″ (25 mm) thick steel plate for instant heat recovery.
- Blazing burner output: Two 35,000 BTU/h Starfire 12″ open burners with one-piece cast-iron bowls & grates.
- Hi-Lo manual valves on both burners and griddle sections for responsive flame control.
- Heavy-duty oven: 40,000 BTU/h standard oven (150 – 500 °F) with 4 rack positions & 1 chrome rack included.
- Built to last: Stainless steel front, sides, plate rail, burner box & 7″ backguard resist dents and corrosion.
- Chef-friendly details: Continuous front rail, extra-deep crumb/grease trough and 6″ adjustable stainless legs.
- Certified safe & sanitary: CSA Flame, CSA Star and NSF listings for commercial installations.
Specifications
| Total Input | 170,000 BTU/h |
|---|---|
| Cooktop Configuration | (2) 12″ open burners (right) • 24″ griddle (left) |
| Burner Rating | 35,000 BTU/h each (open burners) |
| Griddle Rating | 30,000 BTU/h per 12″ section • 60,000 BTU/h total |
| Griddle Plate | 1″ thick polished steel • 3″ grease trough |
| Oven Rating / Range | 40,000 BTU/h • 150–500 °F (66–260 °C) |
| Oven Interior (H × W × D) | 13 ½“ × 26 ¼“ × 29″ (343 × 667 × 737 mm) |
| Rack Positions / Supplied | 4 / 1 chrome rack |
| Gas Connection | 1 ¼“ NPT front manifold (rear stub optional) |
| Manifold Pressure | 6″ WC (NG) – minimum supply 7″ WC |
| Overall Dimensions (W × H × D) | 36″ × 39 ⅜“ × 32″ (914 × 1001 × 813 mm) to cooktop; 7″ backguard standard |
| Legs | 6″ (152 mm) stainless, adjustable |
Included
- Garland Cuisine Series 36″ range (as specified)
- (1) chrome oven rack
- 6″ adjustable stainless steel legs (installed)
- Factory-installed 7″ stainless backguard
- Operator’s manual & warranty documents
What our Experts Think
-
Flexible Cooking Setup: Combines two high-output open burners (35,000 BTU each) with a 24″ griddle (1″‑thick steel plate), allowing sautéing, boiling, frying, and griddle cooking on the same unit.
-
Full-Service Capability: Includes a standard oven underneath, providing stovetop, griddle, and oven cooking in a single 36″ footprint.
-
High Total Heating Capacity: Total output up to 170,000 BTU supports heavy-duty, high-demand cooking workloads typical in commercial kitchens.
-
Durable, Commercial-Grade Construction: Stainless-steel front, sides, plate rail, and burner box resist corrosion and heavy use while simplifying cleaning and maintenance.
-
Practical, Service-Ready Design: Features a 7″ backguard, 6″ adjustable legs, and standard oven rack, making it ready for professional kitchen operations.
Q&A
Q: What is the C36‑2R?
A: A 36‑inch-wide commercial gas range with two open burners, a 24″ griddle, and a standard oven — designed for versatile, heavy-duty use in professional kitchens.
Q: What cooking surfaces does it offer?
A: Two open burners (~35,000 BTU each) on one side and a 24″-wide, 1-inch-thick steel griddle on the other for flat-surface cooking, grilling, or frying.
Q: What is its total heat output?
A: Approximately 170,000 BTU for simultaneous use of burners, griddle, and oven.
Q: What materials and build quality does it have?
A: Stainless-steel front, sides, plate rail, and burner box for durability and easy cleaning; 7″ backguard for splash and heat protection; adjustable legs for leveling.
Q: What type of oven does it include?
A: A standard oven under the cooktop with one rack, allowing baking or roasting while using the burners and griddle.
Q: What type of kitchens is it designed for?
A: Commercial kitchens — restaurants, cafés, catering, and institutional kitchens where versatility and heavy-duty continuous cooking are required.
Q: Is it suitable for residential use?
A: No. Its high heat output, commercial gas and ventilation requirements, and industrial design make it intended for professional kitchens only.
Maintenance Tips
-
Clean burners daily: wipe spills immediately, remove grates and burner caps, clean ports with a wire or soft brush, and dry thoroughly before reassembly.
-
Maintain cast-iron grates: wash with mild soap and warm water, dry fully, and lightly oil to prevent rust; reseason after washing.
-
Wipe stainless steel surfaces with mild detergent and a soft cloth; avoid abrasive pads or steel wool to preserve finish.
-
Clean griddle or hot-top surfaces after use; if washed with water, reseason with a light coat of cooking oil.
-
Empty and clean drip trays or grease pans frequently to reduce fire risk and maintain hygiene.
-
Check burners’ flames regularly — flame should be a stable blue cone; clean ports or inspect for blockages if uneven.
-
Allow the unit to cool before deep cleaning and dry all components thoroughly to prevent rust or warping.
