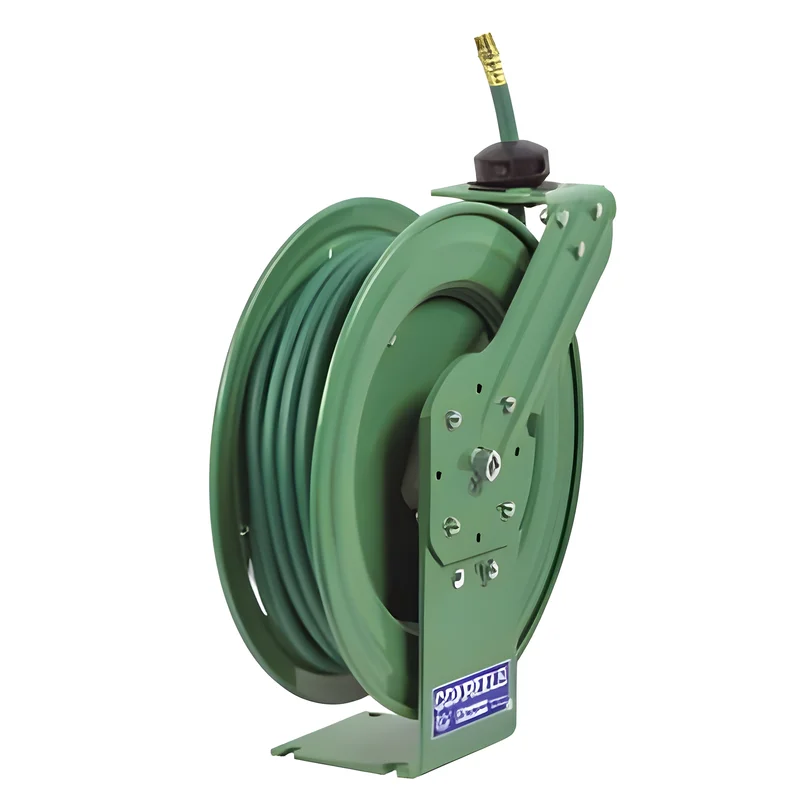

Coxreels Nitro-Pro Series Low Pressure Spring Driven Hose Reels – P-NP-350
Nitro-Pro Series Low Pressure Spring Driven Hose Reels
COXREELS® Nitro-Pro Series spring driven hose reels are the only nitrogen hose reels specifically engineered, tested and approved for use with nitrogen tire inflation systems. These professional-grade specialty reels feature compact space-saving size and heavy duty construction for flexible installation and long-lasting performance. This reel is specifically designed to reduce workplace accidents and increase operator safety.
- Professional grade heavy duty steel construction.
- Rolled edges & ribbed discs provide strength & safety.
- Leading 2-year manufacturer’s limited warranty.
- Made in the U.S.A. – Sold & Supported Worldwide.
Features
- SWIVEL – Nitrogen quality seals in the machined solid from brass 90◦ full-flow NPT swivel for simple seal maintenance and fast and easy hose installation. No need to remove the reel from its mount.
- CARTRIDGE MOTOR – Lubricated and enclosed cartridge-style motor is easily removable for safe and convenient maintenance.
- CNC SPUN DISCS – Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety.
- 1/4″ STEEL BASE – Sturdy single pedestal design with solid one piece steel base and support post, no weld, for maximum stability.
- MULTI-POSITION GUIDE ARM – Versatile aluminium guide arm adjusts to wall, floor, ceiling, and vehicle mounting positions.
- OTHER FEATURES INCLUDE – long lasting, chip resistant and rust inhibiting special „Nitrogen green“ proprietary CPC™ powder coat finish, adjustable solid rubber hose stop, green nitrogen hose, and sturdy permanently lubricated precision bearings.
Specifications
| MODEL | I.D | O.D | LENGTH | MAX PSI | HOSE | SHIP WEIGHT (LBS) | OVERALL DIMENSIONS (W) (H) (L) | MOUNTING PATTERN (M) (N) | BASE (X) (Y) |
|---|---|---|---|---|---|---|---|---|---|
| P-NP-350 | 3/8″ | 5/8″ | 50′ | 300 | Yes | 43 | 6.75″(W) 18.63″(H) 17.13″(L) | 4″(M) 5″(N) | 6″(X) 6″(Y) |
| P-NPL-350 | 3/8″ | 5/8″ | 50′ | 300 | No | 36 | 6.75″(W) 18.63″(H) 17.13″(L) | 4″(M) 5″(N) | 6″(X) 6″(Y) |
What Our Experts Think
- Advanced Nitro-Pro Technology: Designed with superior corrosion resistance, ideal for outdoor and industrial environments where durability is essential.
- Low-Pressure Handling: Suitable for applications up to 350 PSI, perfect for air, water, and light-duty fluid transfer.
- Spring-Driven Retraction: Provides smooth and automatic hose retraction, saving time and reducing manual effort, while preventing tangles and wear.
- Heavy-Duty Construction: Built with robust materials that endure frequent use and challenging conditions, ensuring long-lasting reliability.
- Corrosion-Resistant Coating: Specially coated to protect against rust and corrosion, enhancing the reel’s performance even in harsh environments.
- Compact & Space-Saving: Optimized design for efficient hose storage, helping to keep work areas organized and safe.
- Versatile Applications: Perfect for a range of industries like construction, agriculture, and automotive that require low-pressure hose management.
Q&A
Q: What is the Coxreels Nitro-Pro® Series Low Pressure Spring Driven Hose Reel – P-NP-350?
A: The Coxreels P-NP-350 is a spring-driven hose reel designed for low-pressure fluid transfer applications. Part of the Nitro-Pro® Series, it features an automatic spring rewind system for efficient hose retraction and smooth operation in industrial settings.
Q: What is the hose capacity of this reel?
A: The P-NP-350 can accommodate up to 350 feet of low-pressure hose, making it suitable for a variety of fluid transfer tasks in industrial, commercial, and workshop environments.
Q: How does the spring-driven mechanism work?
A: The reel uses an automatic spring rewind mechanism, allowing for easy and smooth hose retraction after use, minimizing manual effort and preventing hose tangling.
Q: Is the reel durable?
A: Yes, the Nitro-Pro Series reels are constructed from heavy-duty materials with a corrosion-resistant finish, ensuring long-lasting durability in demanding environments.
Q: Is this reel easy to install?
A: Yes, the P-NP-350 features versatile mounting options, including wall, floor, or ceiling installations, allowing flexibility in different workspace configurations.
Q: What are typical applications for this reel?
A: This reel is ideal for use in industrial settings, workshops, automotive applications, and commercial spaces where low-pressure fluid transfer hoses need to be managed efficiently.
Maintenance Tips
- Model: P-NP-350
- Hose Capacity: 50 feet of 3/8” low-pressure hose
- Pressure Rating: Rated for low-pressure applications up to 350 PSI
- Construction: Heavy-duty steel frame with a corrosion-resistant powder-coated finish for long-lasting durability in industrial environments
- Drive Mechanism: Spring-driven automatic rewind for smooth, easy, and fast hose retraction
- Swivel Inlet: Full-flow swivel for uninterrupted fluid or air flow and reduced hose wear
- Roller Design: Multi-position guide arm with reinforced rollers to ensure smooth hose payout and retraction
- Mounting Type: Designed for wall, floor, or ceiling mounting, providing versatile installation options
- Applications: Perfect for air, water, or other low-pressure fluid applications used in industries such as automotive, construction, and workshops
- Temperature Range: Operates effectively in a wide temperature range suitable for various industrial settings
- Weight: Varies depending on mounting options and hose configuration
