Description

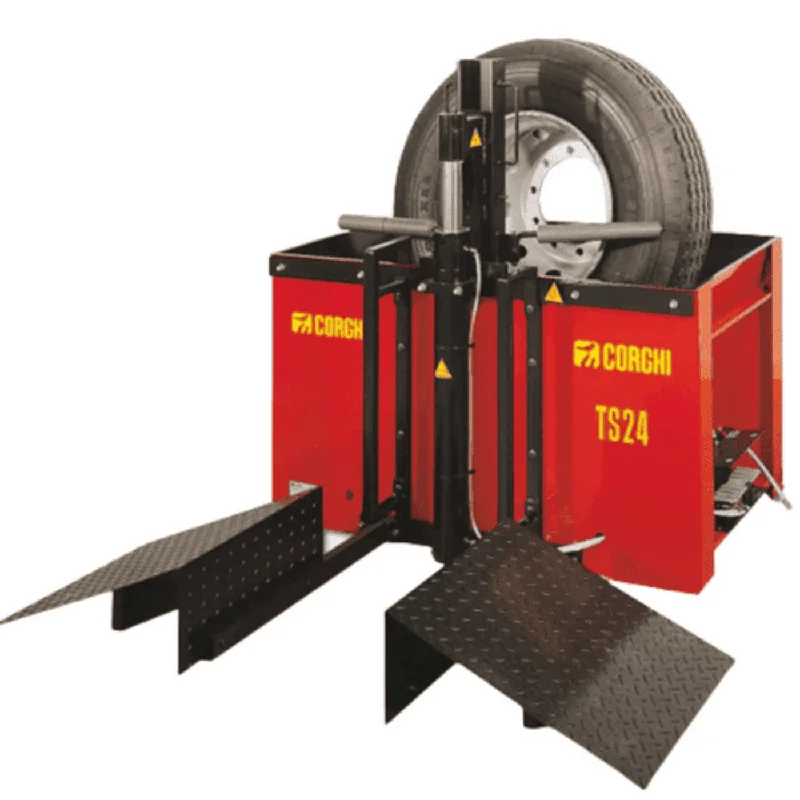

Corghi TS24 Professional Tire Dunking Tank
TS 24 tank has been designed in a very simple and functional way. Its assembly can be directly carried out by the retailer, thus enabling the tank to be shipped in small packages at very low shipping costs.
Features
- It enables to test inner tubes, tubeless and radial tires up to 22,5” size.
- It is equipped with filter/lubricator unit, 2 discharge plugs for the emptying and cleaning of the tank.
- The pedal control unit can be mounted either on the right or on the left side of the tank as occasion may require.
Specifications
| Tank for car tyres | TS24 |
|---|---|
| Maximum wheel diameter | 53” – 1350 Mm |
| Maximum wheel width | 19.5″ – 500 Mm |
| Dimensions | 1500 X 1600 X 1900 Mm – 59” x 63” x 74,8” |
| Working pressure | 8 bar |
| Weight | 280 Kg – 617,2 lbs |
| Painting | Epoxidic esters powders |
